Adhesion force tester,Adhesion strength testing machine,Adhesion tape initial test machine
Use Of Rolling Ball Tack Tester
Rolling Balls Tape Adhesion Tester use place the adhesive tape test sample cohere on tilt plate and the viscous face up, the tilt plate with 30° angle, taken sequentially from the largest to the smallest steel ball make the ball rolling on the sample free, recording adhesive on the sample more than 5 seconds the ball number, as the adhesive tape initial viscosity value
Primary Adhesive Testing Equipment Specifications :
| Item | PT-6030 Rolling Balls Tape Adhesion Tester |
| Tilt angle | 20° ~ 40° adjustable, ( normal use 30°) |
| Rolling ball | Steel, from 1/32” ~ 1” |
| Weight | 500g |
| Run-up segment | 100mm |
Principle :
Definition: Initial adhesion: Objects and pressure-sensitive adhesive tape with small pressure brief contact between the cohesive surface, the adhesion of adhesive tape that effect on objects called initial adhesion.
Inclined planet roll ball device: Through steel and pressure-sensitive adhesive tape with small pressure brief touching between the cohesive surface, the adhesion of adhesive tape that effect on steel to test initial adhesion.

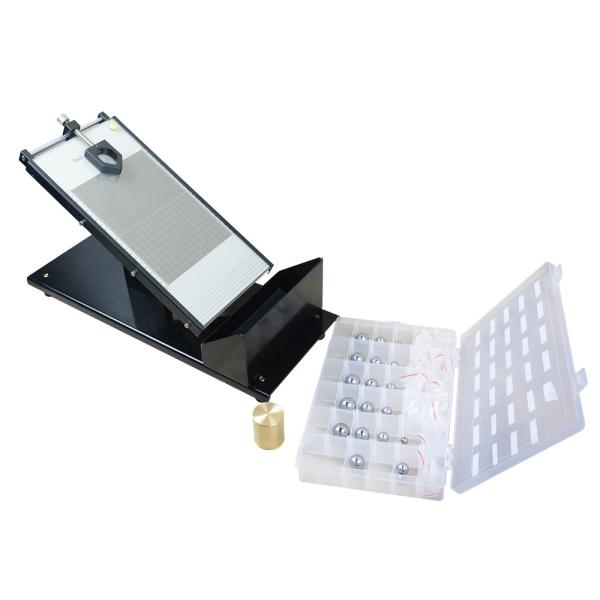

Primary Tack Tester Pic :
Introduction:
FAQ
Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.
Q2: Where is the loading port?
A: Shenzhen Port.
Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.
Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
Product Tags:
|
|
Tilt Angle 30° CNS 11888 Adhesion Testing Machine Images
|
